High-Strength Waterproof Tile Backer Board | Bulk Manufacturer & OEM Supplier
Key Highlights: 100% Waterproof (< 0.1% Absorption) | ISO 9001 & CE Certified | 100% Asbestos-Free | Full OEM/ODM Support

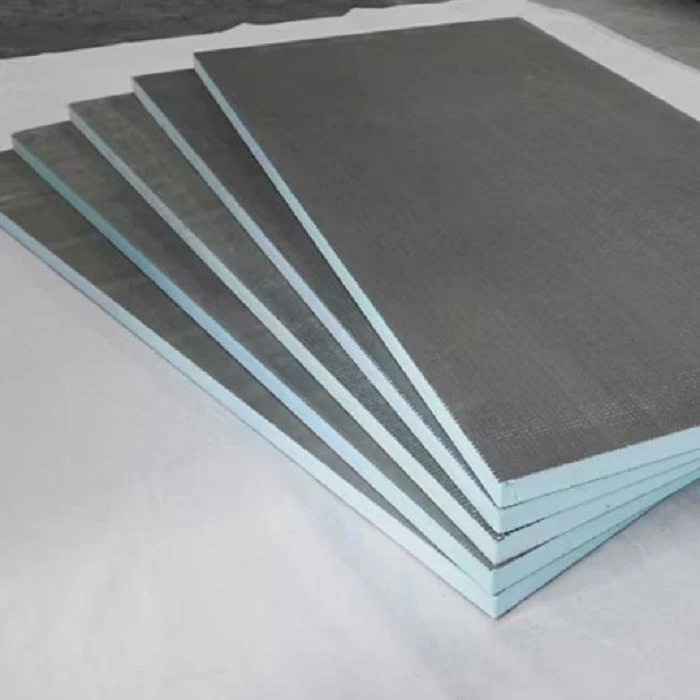

Product Overview
Engineered specifically for wet-area construction, this high-performance tile substrate provides a dimensionally stable, ultra-flat backing for ceramic, porcelain, mosaic, and natural stone tile installations. Comprising a rigid, closed-cell extruded polymer core reinforced with alkali-resistant glass fiber mesh and a specialized mortar-bonding layer, it forms an absolute moisture barrier.
Unlike traditional gypsum drywall or untreated wood panels that degrade or swell, this board completely eliminates substrate-induced tile cracking, mold proliferation, and joint failure. Manufactured under strict ISO 9001 quality management systems and compliant with major international standards, it is the trusted, risk-free choice for global building material distributors, wholesalers, and contractors.
Core Technical Advantages
Rigid Composite Structure for Heavy Loads: Internal reinforced core offers high compressive and flexural rigidity, preventing deflection and tile cracking under heavy large-format tile systems.
100% Moisture & Mold Proofing: Non-porous layers completely block water vapor and liquid (< 0.1% water absorption per ASTM/EN standards), protecting wall cavities and preventing mold in showers and steam rooms.
High Dimensional Stability: Resists thermal expansion, contraction, and warping under extreme temperature and humidity shifts, ensuring long-term surface flatness.
Enhanced Adhesive Bonding Interface: Factory-textured outer face maximizes mechanical keying with polymer-modified thin-set mortars, meeting ASTM C472 / ANSI A118 shear bond benchmarks.
Ergonomic & Lightweight: Significantly lighter than traditional cement boards, reducing shipping costs per square meter, worker fatigue, and on-site installation time.
Standard Tool Processing & Fire Safety: Easily scored and snapped with a utility knife (no diamond blades needed). Configurable fire-retardant options (Class A / B1 ratings) available for commercial projects.
Target Applications
Residential
Shower enclosures, bathroom accent walls, bathtub surrounds, laundry rooms, and kitchen backsplashes.
Commercial / Hospitality
Hotels, apartment complexes, shopping malls, public swimming pool changing areas, and spa wellness facilities.
Technical Specifications
|
Parameter |
Specification Data |
|
Primary Keywords |
Waterproof tile backer board wholesale, OEM tile backing board, extruded polymer substrate |
|
Core Material |
Closed-cell extruded polymer / reinforced waterproof composite |
|
Standard Thickness |
6mm, 10mm, 12.5mm (Customizable on request) |
|
Standard Dimensions |
600 x 1200 mm, 1200 x 2400 mm (Custom metric/imperial sizes available) |
|
Edge Profile |
Square edge / Shiplap joint |
|
Water Absorption |
< 0.1% (Long-term immersion tested per ASTM / EN standards) |
|
Tile Compatibility |
Porcelain, ceramic, mosaic, marble, granite, stone veneer |
|
Environmental & Safety |
100% Asbestos-free, Low VOC emissions |
|
Compliance & Certifications |
ISO 9001, CE Certified, Fire-retardant grade options (Class A / B1) |
Quality Control & Manufacturing Inspection
To guarantee batch-to-batch consistency for international importers, production undergoes three rigorous inspection gates:
Raw Material Check
Verification of core density, resin consistency, and mesh tensile strength.
In-Line Monitoring
Automated tolerance checks for board thickness, surface flatness, and edge squareness.
Finished Goods Audit
Final evaluation of packaging protection, pallet strapping, and moisture-barrier wrapping prior to container loading.
OEM, Customization & Bulk Supply Services
Dimensions & Thickness
Flexible production lines to accommodate non-standard metric or imperial sizing.
Private Labeling
Customized surface printing, moisture-resistant carton labeling, and pallet shrink-wrapping featuring your corporate branding.
Logistics Support
Optimized container loading configurations (FCL/LCL) designed to maximize freight cost efficiency for global distributors.
FAQ
Q: What is High Strength Waterproof Wall Tile Backer Board used for?
A: It is primarily used as a waterproof, dimensionally stable substrate behind tiles in wet areas such as bathrooms, shower walls, commercial kitchens, and wellness spa construction projects.
Q: Why choose a waterproof tile backer board instead of regular drywall?
A: Regular drywall absorbs moisture, degrades, and loses structural strength over time, leading to tile failure and mold. Our waterproof tile backer board is engineered specifically for wet environments, offering complete moisture resistance and superior long-term stability.
Q: Can this backer board be used for large-format tiles and natural stone?
A: Yes. The high-strength composite structure provides an exceptionally rigid and flat surface suitable for heavy large-format ceramic tiles, porcelain tiles, marble, granite, and stone veneers.
Q: Is the board compliant with international building codes and standards?
A: Yes. Our manufacturing facilities operate under strict ISO 9001 quality controls, and our products hold CE certification, comply with relevant ASTM / EN performance standards, and are 100% asbestos-free.
Q: What are the fire-retardant options available for commercial projects?
A: We offer configurable fire-retardant grade options (including Class A and B1 fire ratings) to satisfy rigorous international commercial building and hospitality safety codes.
